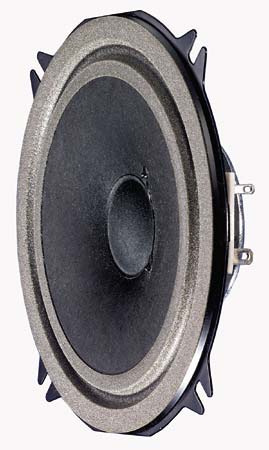

LAAJAKAISTAELEMENTTI VISATON FR 12 8 OHM

13 cm (5") fullrange speaker system with an inverted cone displacement. Very compact design making this the ideal choice where space is at a premium.

Typical applications:
- Built into cars, busses or trains
- Electronic musical instruments
- Monitoring speaker for electronic devices

Technical Data:
Rated power	15 W
Maximum power	40 W
Nominal impedance Z	8 Ohm
Frequency response	70–18000 Hz
Mean sound pressure level	85 dB (1 W/1 m)
Opening angle (-6 dB)	79°/4000 Hz
Excursion limit	+/−2,5 mm
Resonance frequency fs	110 Hz
Magnetic induction	0,8 T
Magnetic flux	150 µWb
Height of front pole-plate	3 mm
Voice coil diameter	20 mm
Height of winding	4,5 mm
Cutout diameter	114 mm
Net weight	0,284 kg
D.C. resistance Rdc	6,8 Ohm
Mechanical Q factor Qms	5,61
Electrical Q factor Qes	2,8
Total Q factor Qts	1,87
Equivalent volume Vas	8,7 l
Effective piston area Sd	87 cm²
Dynamically moved mass Mms	3,8 g
Force factor Bxl	1,7 T m
Inductance of the voice coil L	0,22 mH
Connections	4,8 x 0,8 mm (+) 2,8 x 0,8 mm (−)
Temperature range	−25 ... 70 °C
