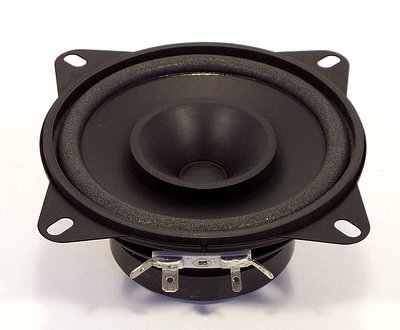

LAAJAKAISTAELEMENTTI VISATON FR 10 HMP 4 OHM

10 cm (4") fullrange speaker with polypropylene diaphragm, dual cone and European standard basket. Simple fitting in vehicles with cut-outs for 10 cm speakers.

Typical applications:
- Vehicles
- Mobile homes

Attributes:
- Waterproof cone
- Metal basket

Technical Data:
Rated power	20 W
Maximum power	30 W
Nominal impedance Z	4 Ohm
Frequency response	90–20000 Hz
Mean sound pressure level	86 dB (1 W/1 m)
Opening angle (-6 dB)	87°/4000 Hz
Excursion limit	+/−2 mm
Resonance frequency fs	120 Hz
Height of front pole-plate	2 mm
Voice coil diameter	14 mm
Height of winding	5 mm
Cutout diameter	94 mm
Net weight	0,268 kg
Temperature range	−25 ... 70 °C
