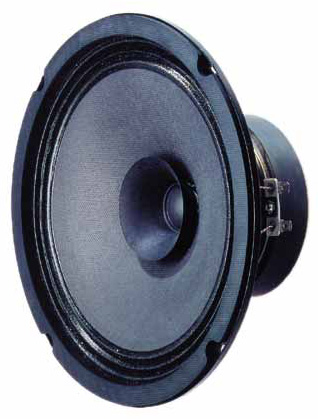

LAAJAKAISTAELEMENTTI VISATON BG 20 8 OHM

20 cm (8") full-range speaker with tweeter dome. High efficiency. Suitable for full-range units as vocal or guitar monitors or as a mid-range unit for full-scale or musicians' PA systems. Typical applications: - Midrange unit for full scale or musicians' PA systems, - Vocal or guitar monitors, - Fullrange speaker for electronic organs and keyboards.

Technical Data:
Rated power	40 W
Maximum power	70 W
Nominal impedance Z	8 Ohm
Frequency response	fu–18000 Hz
(fu: Lower cut-off frequency depending on cabinet)	.
Mean sound pressure level	92 dB (1 W/1 m)
Opening angle (-6 dB)	45°/4000 Hz
Excursion limit	+/−4 mm
Resonance frequency fs	38 Hz
Magnetic induction	1,2 T
Magnetic flux	380 µWb
Height of front pole-plate	4 mm
Voice coil diameter	25 mm
Height of winding	8 mm
Cutout diameter	184 mm
Net weight	1,3 kg
D.C. resistance Rdc	6,2 Ohm
Mechanical Q factor Qms	3,47
Electrical Q factor Qes	0,51
Total Q factor Qts	0,44
Equivalent volume Vas	110 l
Effective piston area Sd	214 cm²
Dynamically moved mass Mms	10 g
Force factor Bxl	6,1 Tm
Inductance of the voice coil L	0,8 mH
Temperature range	−25 ... 70 °C
