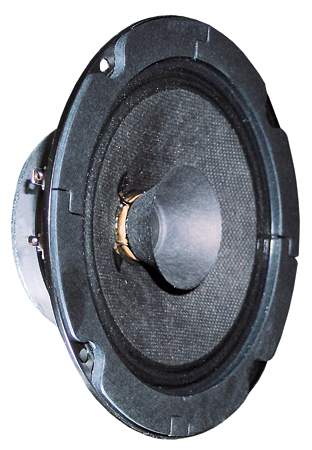

LAAJAKAISTAELEMENTTI VISATON BG 13 P 8 OHM

13 cm (5") full-range speaker with tweeter dome. Very evenly spread frequency response and excellent voice reproduction quality. High level of efficiency. For use in larger scale PA arrays or in smaller monitor speakers. Typical applications: - PA arrays, projection speakers, - smaller monitor speakers .

Technical Data:
Rated power	20 W
Maximum power	40 W
Nominal impedance Z	8 Ohm
Frequency response	120–20000 Hz
Mean sound pressure level	92 dB (1 W/1 m)
Opening angle (-6 dB)	61°/4000 Hz
Excursion limit	+/−2 mm
Resonance frequency fs	168 Hz
Magnetic induction	1,0 T
Magnetic flux	190 µWb
Height of front pole-plate	3 mm
Voice coil diameter	20 mm
Height of winding	4,5 mm
Cutout diameter	110 mm
Net weight	0,43 kg
D.C. resistance Rdc	5,2 Ohm
Mechanical Q factor Qms	3,06
Electrical Q factor Qes	1,58
Total Q factor Qts	1,04
Equivalent volume Vas	2,0 l
Effective piston area Sd	68 cm²
Dynamically moved mass Mms	3,0 g
Force factor Bxl	3,2 Tm
Inductance of the voice coil L	0,65 mH
Temperature range	−25 ... 70 °C
