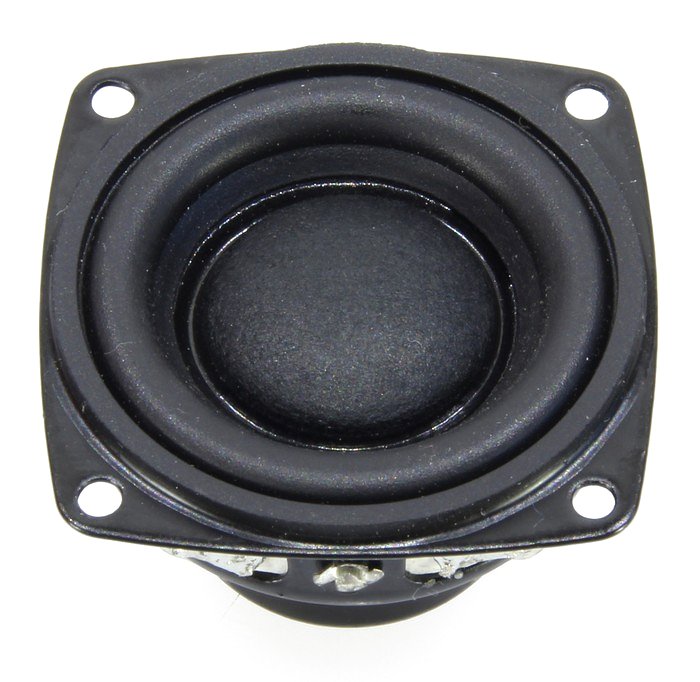

LAAJAKAISTAELEMENTTI VISATON BF 37 4 OHM






3.7 CM (1.5'') LAAJAKISTAELEMENTTI
12,90 €(Sis.alv)
10,28 €(alv 0%)
- Tuotekoodi: BF37-4OHM
- Takuu: 3 vuotta
- Arvioitu toimitusaika: 9.9.2021
- Tilattavissa yli 50 kplTuotteet lähetetään 1-2 arkipäivässä niiden saavuttua.
- Toimituskulut alkaen 7,90 €(Pientoimituslisä 3,90 € alle 15,00 € tilauksista)Nouto myymälästä0,00 €
kpl
3.7 cm (1.5") fullrange speaker with a wide and balanced frequency response and very good low range reproduction. With powerful Neodymium driver and high membrane excursion limit, optimized for small vented enclosures/enclosures with passive radiator. Suitable for applications where slim construction and good music and speech reproduction are requested.
*) IP protection class for front side when built into a sealed enclosure
Typical applications
Flat TVs
Info terminals
other compact devices speech and music reproduction
Technical Data
Rated power 5 W
Maximum power 8 W
Nominal impedance Z 4 Ohm
Frequency response 100–20000 Hz
Mean sound pressure level 74 dB (1 W/1 m)
Excursion limit +/-3.4 mm
Resonance frequency fs 155 Hz
Net weight 33.1 g
D.C. resistance Rdc 3.8 Ohm
Mechanical Q factor Qms 5.11
Electrical Q factor Qes 0.86
Total Q factor Qts 0.74
Equivalent volume Vas 0.06 l
Effective piston area Sd 6.2 cm²
Dynamically moved mass Mms 1.0 g
Force factor Bxl 1.99 Tm
Inductance of the voice coil L 0.17 mH
Connections Soldering ears
Protective system IP X4 *)
