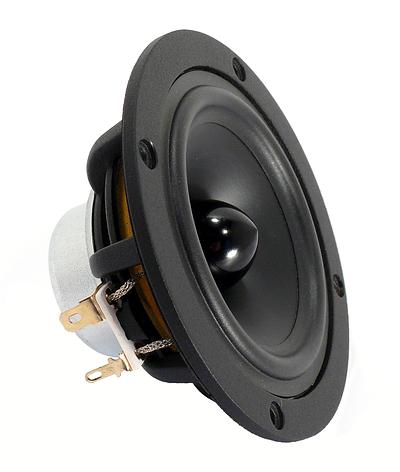

LAAJAKAISTAELEMENTTI VISATON B 80 8 OHM

8 cm (3.3") high-end full-range loudspeaker with excellent balanced response characteristics. Due to perfect accordance of the coated paper cone, the rear ventilated damper and the phase plug, as well as the strong and lightweight neodymium magnet, an extremely well-balanced frequency response with very low harmonic distortion and lowest possible mechanical losses comes into being. The B 80 8 OHM is ideal for small high-end shelf speakers or as a mid-high-range unit in high-end multi-way speakers.

Technical Data:
Cm	0,87 mm/N
Rated power	30 W
Maximum power	50 W
Nominal impedance Z	8 Ohm
Frequency response	80–20000 Hz
Mean sound pressure level	85 dB (1 W/1 m)
Opening angle (-6 dB)	119°/4000 Hz
Maximum linear displacement	2,2 mm
Resonance frequency fs	110 Hz
Magnetic induction	1,17 T
Magnetic flux	290 µWb
Height of front pole-plate	3 mm
Voice coil diameter	25 mm
Height of winding	7,5 mm
Cutout diameter	89 mm
Net weight	0,32 kg
D.C. resistance Rdc	6,6 Ohm
Mechanical Q factor Qms	6,53
Electrical Q factor Qes	0,69
Total Q factor Qts	0,63
Equivalent volume Vas	1,8 l
Effective piston area Sd	38,5 cm²
Dynamically moved mass Mms	2,8 g
Force factor Bxl	4,15 Tm
Connections	5,1 x 0,5 mm (+) 2,8 x 0,5 mm (−)
