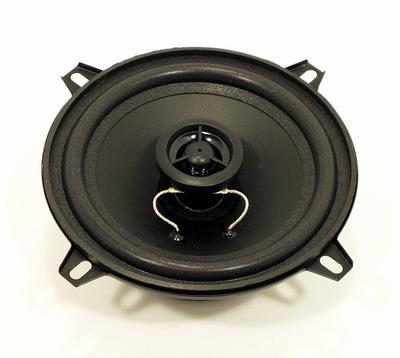

KOAKSIAALIELEMENTTI VISATON PX 13 4 OHM

13 cm (5") 2-way coaxial loudspeaker with standard basket and piezoelectric tweeter. Straightforward installation in vehicles with cutouts for 13 cm speakers.

Typical applications:
- Vehicles
- Mobile homes

Attributes:
- Polypropylene cone
- Metal basket
- Coaxial speaker

Technical Data:
Rated power	20 W
Maximum power	30 W
Nominal impedance Z	4 Ohm
Frequency response	60–15000 Hz
Mean sound pressure level	84 dB (1 W/1 m)
Opening angle (-6 dB)	75°/4000 Hz
Excursion limit	+/−2 mm
Resonance frequency fs	95 Hz
Magnetic induction	1,0 T
Magnetic flux	190 µWb
Height of front pole-plate	3 mm
Voice coil diameter	20 mm
Height of winding	5,5 mm
Cutout diameter	116 mm
Net weight	0,48 kg
Temperature range	−25 ... 70 °C
