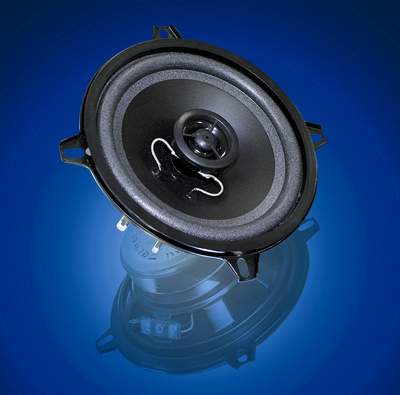

KOAKSIAALIELEMENTTI VISATON FX 13 4 OHM

13 cm (5") 2-way coaxial loudspeaker with standard basket. Integrated crossover (capacitor) for the tweeter. Straightforward installation in vehicles with cutouts for 13 cm speakers. Waterproof PP-cone.

Typical applications:
- Vehicles
- Mobile homes

Attributes:
- Waterproof cone
- Metal basket
- Coaxial speaker

Technical Data:
Rated power	30 W
Maximum power	50 W
Nominal impedance Z	4 Ohm
Frequency response	60–20000 Hz
Mean sound pressure level	85 dB (1 W/1 m)
Opening angle (-6 dB)	72°/4000 Hz
Excursion limit	+/−2 mm
Resonance frequency fs	100 Hz
Magnetic induction	1,0 T
Magnetic flux	250 µWb
Height of front pole-plate	4 mm
Voice coil diameter	20 mm
Height of winding	6 mm
Cutout diameter	115 mm
Net weight	0,51 kg
Connections	4,8 x 0,8 mm (+) 2,8 x 0,8 mm (−)
Temperature range	−25 ... 70 °C
