KOAKSIAALIELEMENTTI VISATON FX 10 4 OHM

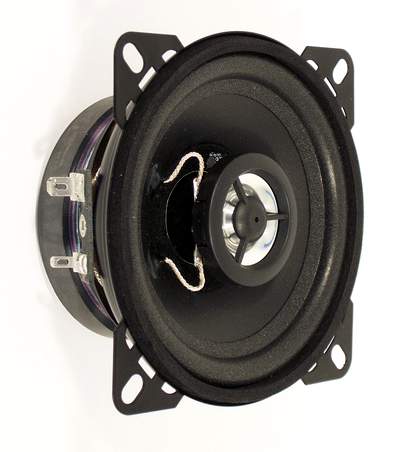

10 cm (4") 2-way coaxial loudspeaker with standard basket. Integrated crossover (capacitor) for the tweeter. Straightforward installation in vehicles with cutouts for 10 cm speakers. Waterproof PP-cone.

Typical applications:
- Vehicles
- Mobile homes

Attributes:
- Waterproof cone
- Metal basket
- Coaxial speaker

Technical Data:
Rated power	40 W
Maximum power	70 W
Nominal impedance Z	4 Ohm
Frequency response	70–22000 Hz
Mean sound pressure level	84 dB (1 W/1 m)
Opening angle (-6 dB)	88°/4000 Hz
Excursion limit	+/−2 mm
Resonance frequency fs	110 Hz
Height of front pole-plate	3 mm
Voice coil diameter	25 mm
Height of winding	6 mm
Cutout diameter	93 mm
Net weight	0,4 kg
Temperature range	−25 ... 70 °C
