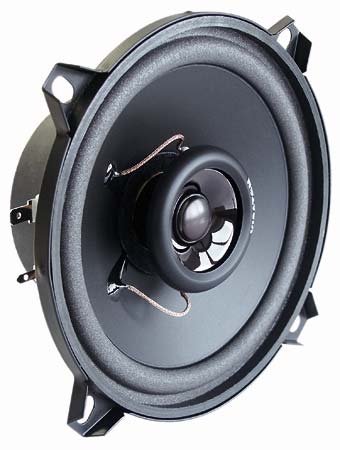

KOAKSIAALIELEMENTTI VISATON DX 13 (pari) 4 OHM

13 cm (5") 2-way coaxial loudspeakers with polypropylene cone and polycarbonate tweeter. Integrated crossover (capacitor) for the tweeter. Very balanced sound. Straightforward installation in vehicles with cutouts for 13 cm speakers. Door and rear tray installation possible using mounting ring and grille. Packed in pairs, mounting accessories and protective grilles are included. Typical applications : - Vehicles, - Mobile homes.

Technical Data:
Rated power	60 W
Maximum power	80 W
Nominal impedance Z	4 Ohm
Frequency response	70–20000 Hz
Mean sound pressure level	86 dB (1 W/1 m)
Opening angle (-6 dB)	180°/4000 Hz
Excursion limit	+/−2,5 mm
Resonance frequency fs	90 Hz
Magnetic induction	1,1 T
Magnetic flux	345 µWb
Height of front pole-plate	4 mm
Voice coil diameter	25 mm/14 mm
Height of winding	7 mm
Cutout diameter	116 mm
Net weight	0,69 kg
D.C. resistance Rdc	3,3 Ohm
Mechanical Q factor Qms	8,51
Electrical Q factor Qes	1,07
Total Q factor Qts	0,95
Effective piston area Sd	88 cm²
Inductance of the voice coil L	0,39 mH
Temperature range	−25 ... 70 °C
