KOAKSIAALIELEMENTTI VISATON DX 10 (pari) 4 OHM

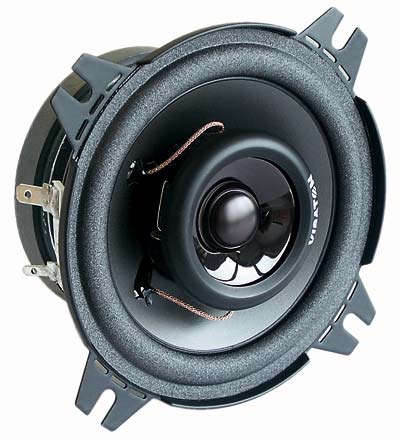

10 cm (4") 2-way coaxial loudspeakers with 10 cm polypropylene cone and polycarbonate dome tweeter. Integrated crossover (capacitor) for the tweeter. Very balanced sound. Straightforward installation in vehicles with 10 cm cutouts. Door and rear tray installation possible using mounting ring and grille. Packed in pairs, mounting accessories and protective grilles are included. Typical applications : - Vehicles, - Mobile homes.

Technical Data:
Rated power	50 W
Maximum power	70 W
Nominal impedance Z	4 Ohm
Frequency response	80–20000 Hz
Mean sound pressure level	88 dB (1 W/1 m)
Opening angle (-6 dB)	98°/4000 Hz
Excursion limit	+/−3 mm
Resonance frequency fs	110 Hz
Magnetic induction	1 T
Magnetic flux	310 µWb
Height of front pole-plate	4 mm
Voice coil diameter	25 mm/14 mm
Height of winding	6 mm
Cutout diameter	91 mm
Net weight	0,64 kg
D.C. resistance Rdc	3,6 Ohm
Mechanical Q factor Qms	8,17
Electrical Q factor Qes	0,92
Total Q factor Qts	0,83
Effective piston area Sd	50 cm²
Inductance of the voice coil L	0,37 mH
Temperature range	−25 ... 70 °C
