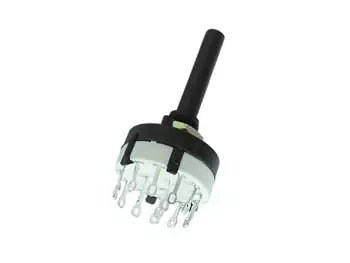

KIERTOKYTKIN 3x4 PIIRIKORTILLE

Ominaisuudet:
type: "C" = for PCB
Tekniset tiedot:
contact ratings: •• 350mA at 110V (AC or DC) •• 150mA at 250V (AC or DC) • current capacity: 5A continuous • electrical life: 15000 cycles at full load, up to 30000 detent operations • contact resistance: initially max. 20mohm • dielectric strength: 1000Vrms at sea level • operating temperature: -20°C to +85°C • stops: the stop can be placed in 12 different positions (= 30° indexing) • non-shorting contacts: break before make • materials: •• shaft: glass-filled nylon •• cover: glass-filled nylon •• base: glass-filled nylon •• contacts: brass, silver-plated •• terminals: brass, silver-plated •• hardware nut: zinc, nickel-plated •• lock washer: steel, zinc-plated •• stop ring: brass, nickel-plated • Ø: 6mm
