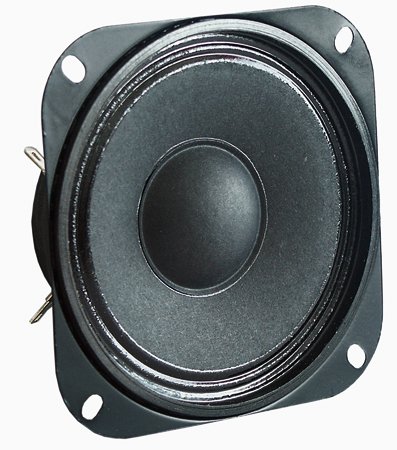

KESKIÄÄNIELEMENTTI VISATON M 10 8 OHM

100 mm (4") cone midrange driver for the midrange band between 1000 and 5000 Hz. Due to the enclosed rear no separate midrange housing construction is necessary. Very good price/performance ratio.

Technical Data:
Nominal power handling with high pass	80 W (12 dB/Okt.; 800 Hz)
Peak power handling with high pass	100 W (12 dB/Okt.; 800 Hz)
Nominal impedance Z	8 Ohm
Frequency response	450–13000 Hz
Mean sound pressure level	90 dB (1 W/1 m)
Opening angle (-6 dB)	90°/4000 Hz
Excursion limit	+/−2 mm
Resonance frequency fs	700 Hz
Magnetic induction	0,9 T
Magnetic flux	230 µWb
Height of front pole-plate	3 mm
Voice coil diameter	20 mm
Height of winding	6 mm
Cutout diameter	95 mm
Net weight	0,33 kg
