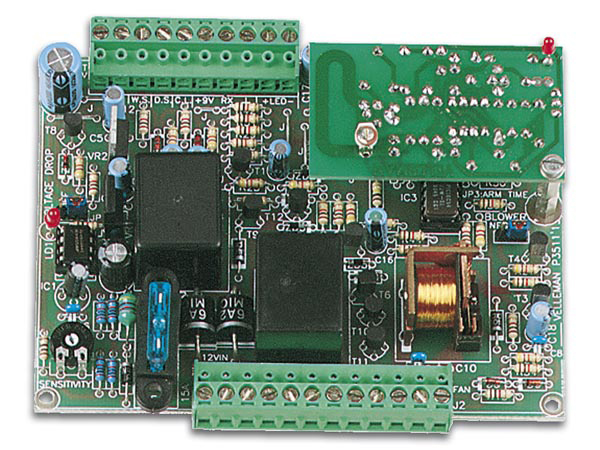

KAUKO-OHJATTAVA (IR) AUTOHÄLYTIN RAKENNUSSARJA

This outstanding car alarm is full of potential, able to connect up with and operate a variety of sensors. In addition, the remote control facility (IR) allows the central locking system to be operated together with the alarm.

Features

• microprocessor technology
• multi-functional remote control operation
• audio and visual on/off indicators
• multifunction dashboard mounted LED
• automatic reset after alarm
• adjustable voltage drop (reaction to interior lighting)
• voltage drop detection active immediately, or after 5 minutes
• direct alarm trigger input (direct alarm after triggering)
• warning alarm trigger input (2 triggers within 15 seconds = alarm)
• warning input can be switched off with the remote control
• adjustable shock detector (can be switched off with the remote control)
• detector input for ventilator in order to avoid false alarms
• contact switches for bonnet and boot
• internal siren for on/off signal and alarm
• output for external siren and pager (5A)
• alarm time: 30 seconds
• starter interrupter for ignition or diesel fuel pump (15A)
• special starter motor interrupter relay (30A) supplied
• switch on protection if contact is on
• output to hazard lights (2 x 6A max.)
• output for central locking (100mA)
• selectable code for remote control transmitter and receiver (8.748 codes)
• an unlimited number of remote control transmitters can be used (K6708)
• automatically resets in the event of accidental switch off (60 seconds)
• connection for extra starter interrupter via security code lock module (SP150)
• diagnosis facility to identify a triggered sensor at a later time

Specifications

• supply voltage: 12VDC
• consumption: 50mA in standby
• temperature range: -40 to +85°C
• battery for remote control unit: 12V type V23GA: ALKALINE MN21 V23A 12V-38mAh 4223.101.401 (1pc/bl) , V23A
• recommended housing: G313: SEALED ABS ENCLOSURE - DARK GREY - 171 x 121 x 55 mm
• in option:
  • 951: ULTRASONIC DETECTOR WITH TWO SEPARATE HEADS ultrasonic detector
  • 959 radar intrusion detector
  • SP150 ignition cut-off system
