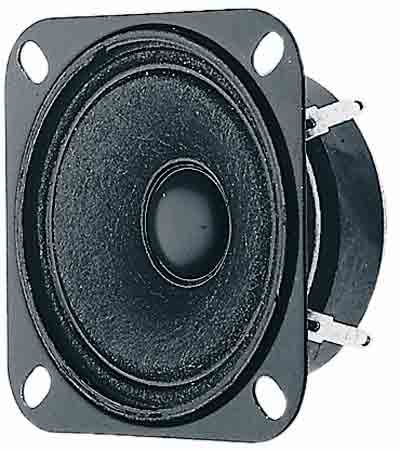

KARTIODISKANTTI VISATON TW 6 NG 8 OHM

Cone tweeter for the high-frequency range above 5000 Hz. Balanced frequency response with brilliant treble and high power handling. Due to the sealed rear no separate high-frequency range housing construction necessary. Especially suitable as replacement unit for many HiFi speakers.

Technical Data:
Nominal power handling with high pass	60 W (12 dB/Okt.; 5000 Hz)
Peak power handling with high pass	100 W (12 dB/Okt.; 5000 Hz)
Nominal impedance Z	8 Ohm
Frequency response	1000–30000 Hz
Mean sound pressure level	91 dB (1 W/1 m)
Opening angle (-6 dB)	97°/8000 Hz
Excursion limit	+/−0,5 mm
Resonance frequency fs	1500 Hz
Magnetic induction	0,8 T
Magnetic flux	70 µWb
Height of front pole-plate	2,5 mm
Voice coil diameter	14 mm
Height of winding	2,5 mm
Cutout diameter	56 mm
Net weight	0,14 kg
D.C. resistance Rdc	6,5 Ohm
Effective piston area Sd	17 cm²
Inductance of the voice coil L	0,17 mH
