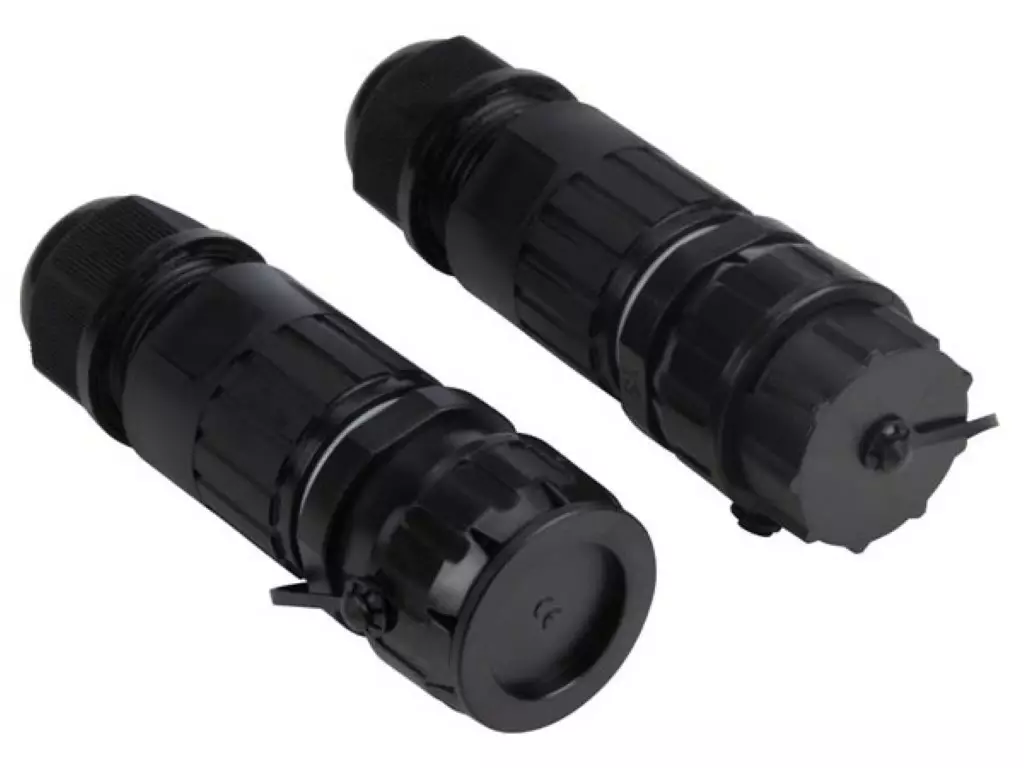

KAAPELILIITINPARI 4NAP - VESITIIVIS IP67 - 16A 320V UROS JA NAARAS (1 pari)

Applications: outdoor LED lamp, LED displays, servo motors, machining tools, measurement
control, process technology, and medical equipment, etc

Tekniset tiedot

• number of contacts: 4
• inner cable connection: screw
• wire gauge: 0.5 - 2.5 mm²
• rated voltage: max. 320 V
• rated current: 16 A @ 55 °C
• insulation resistance: > 100 MOhm
• contact resistance: < 5 mOhm
• mechanical operation: > 200 mating cycles
• operating temperature: -40 to 95 °C
• IP degree protection: IP68 (after mating)
• for cable diameter: 5 - 7.4 mm
• flammability: UL94-V2
