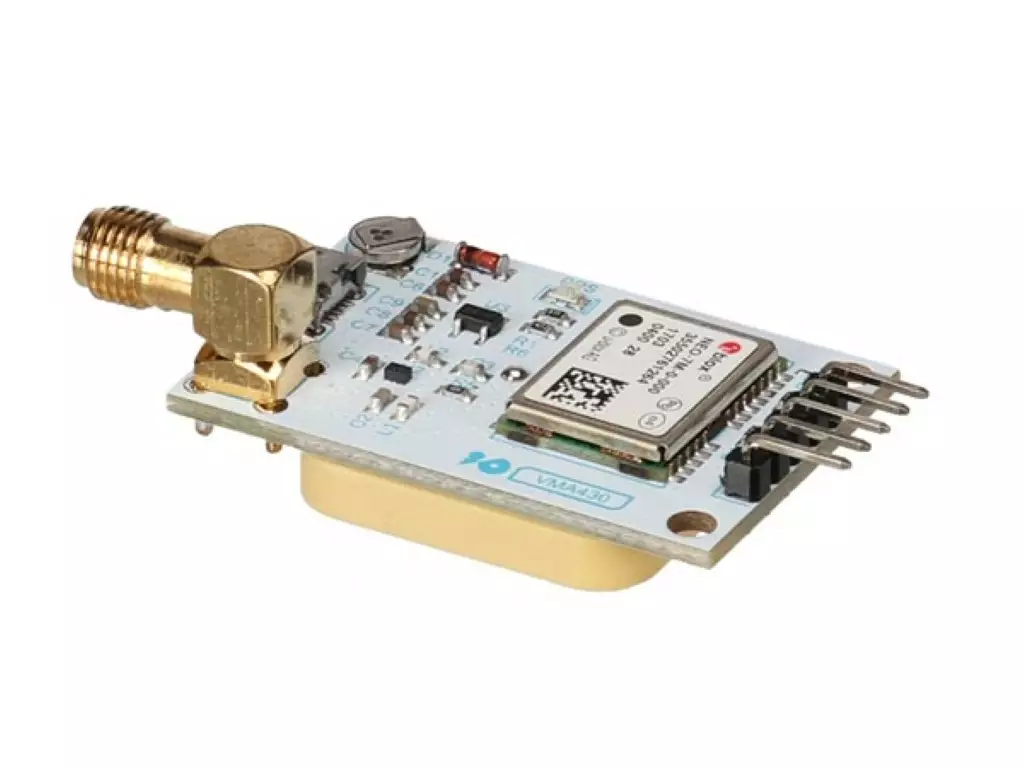

GPS MODULE U-BLOX NEO-7M FOR ARDUINO®

 NEO-7-sarjan itsenäiset GNSS-moduulit perustuvat u-blox 7 GNSS-moottorin (GPS, GLONASS, QZSS ja SBAS) poikkeukselliseen suorituskykyyn. NEO-7-sarja tarjoaa korkean herkkyyden ja minimaaliset hankinta-ajat alalla hyväksi havaitussa NEO-muodossa.

Ominaisuudet

U-BLOX NEO-7M module, compact and excellent performance

parameters can be set via serial port and saved in EEPROM

with SMA interface, you can connect a variety of antenna, strong adaptability

compatible with 3.3 V / 5 V level for easy connection to a variety of microprocessor systems

back-up rechargeable battery on board

with micro USB, no need for USB-TTL tools

with TTL interface

onboard ceramic antenna

sample code: https://playground.arduino.cc/UBlox/GPS

evaluation software (U-Center) available for download

Tekniset tiedot

supply voltage: 3.3 to 5 VDC (or by USB cable)

connections: VCC (+5 V), GND (ground), TX, RX, PPS (time pulse)

default baud rate: 9600 baud

dimensions: 4 x 2.5 x 1.5 cm

weight: 15 g
