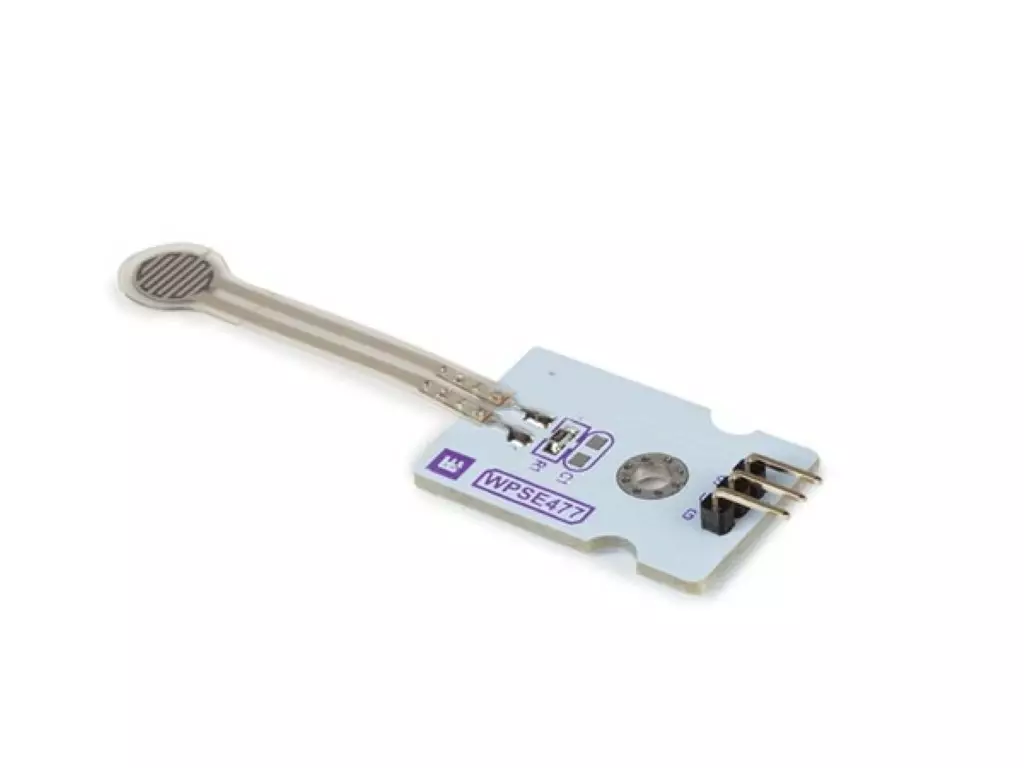

FSR (FORCE SENSING RESISTOR) SENSOR

This little module adopts a flexible nano pressure-sensitive material with an ultra-thin film pad to sense the exerted pressure. When pressure is applied to the measuring disc, the resistance of the sensor will change. This change in resistance is converted to a varying output voltage using an additional resistor mounted on the module to form a voltage divider.

Compatible with Arduino and Arduino compatibles!

Ominaisuudet

uses a flexible pressure-sensitive material to sense exerted pressure

broad pressure sensing range (up to 0,5 kg)

Tekniset tiedot

supply voltage: 3,3 - 5 V DC

interface: analog voltage output

pressure measuring range: 0 - 0,5 kg

thickness of measuring disc: < 0,25 mm

pressure measuring theshold: < 20 g

repeatability: < 5,8% (50% load)

accuracy: 2,5% (85% range interval)

durability: > 100 000 cycles

initial resistance: > 100 MO (no load)

response time: < 1 ms

recovery time: < 15 ms

weight: 2,5 g

dimensions (W x L x H): 67 x 22 x 7 mm
