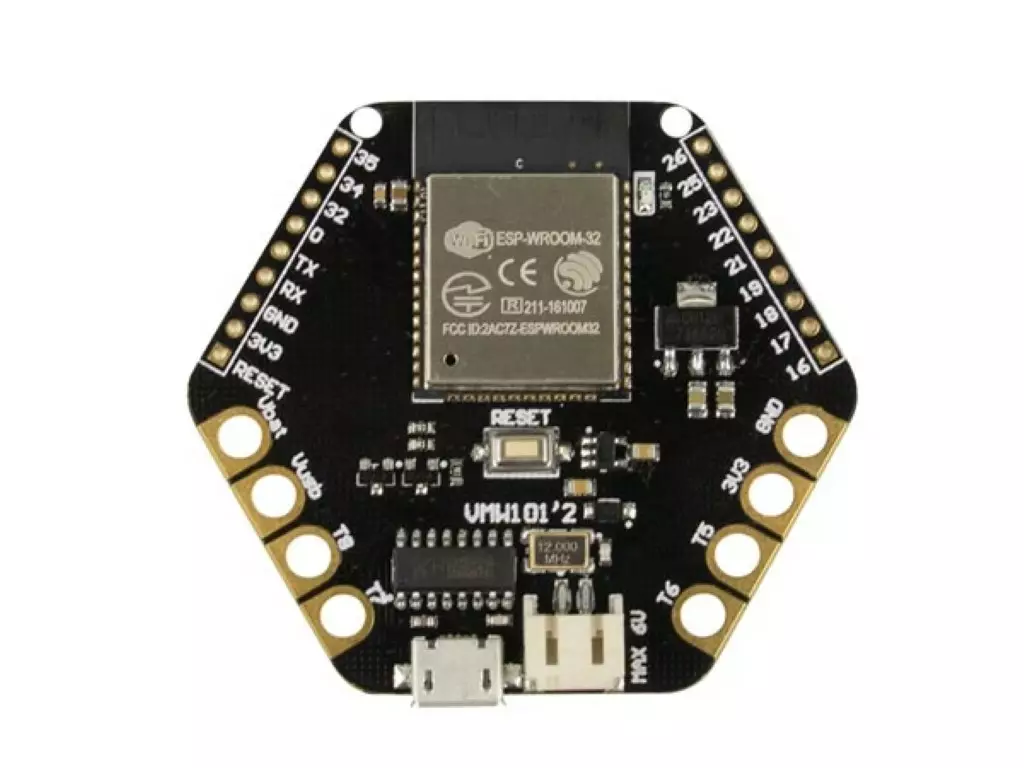

ESP32 WEARABLE DEVELOPMENT BOARD

Get ready to meet the most versatile wearable and ESP32 based development board of the moment! It's 100% Arduino compatible and it's easy and invisible to wear thanks to its uniquely thin PCB with 8 x sewable pads. Plus, it won't sting you because the PCB design has no sharp edges. Also, 4 of the pads are capacitive touch-enabled.

As for the versatility; this little development board of 56 x 50 x 7.5 mm (2,2 x 1,97 x 2,95 inch) packs a lot of features such as a hall effect sensor, a temperature sensor and an ultra-low power analog pre-amplifier. But the neatest on-board feature is undoubtedly the ability to connect the board to WiFi and Bluetooth®. Getting any ideas? Here's one: connect the board with our BirghtDot wearable LEDs collection and make them react to text or social messages, magnets, sounds, time, temperature and more!

You can easily connect this wearable with a battery thanks to the JST connector and you don't have to worry about high power consumption because the board also features a deep sleep modus to keep its consumption to a minimum when you don't need it. To top things off, this thin board is at least 10 times faster than an Arduino Uno because of its super high 240 MHz clock.

Go take a look at the BrightDot wearable LED boards and get creative!

[b]Check out the following tutorials:[/b]
[link url=https://manuals.velleman.eu/article.php?id=1146]Make a BrightDot tie[/link]
[link url=https://manuals.velleman.eu/article.php?id=1145]Make a BrightDot twinkle beanie[/link]

Ominaisuudet

on board WiFi and Bluetooth®

8 x easy sewable pads:

4 x regular power pads

4 x capacitive touch-enabled pads

1 x on-board orange LED

hall effect sensor

temperature sensor

ultra-low power analog pre-amplifier

integrated LiPo battery charger

dedicated reset button

2 × 8-bit DACs

ultra-thin PCB

Arduino compatible

compatible with all BrightDot wearable LED boards

based on the ESP32

SPI, I²S, I²C and UART interfaces

the LED PWM, UART, I2C, I2S, and general purpose SPI functions can be configured to any GPIO

12-bit SAR ADC

LED PWM (up to 16 channels)

deep sleep mode to lower power consumption when preferable

Tekniset tiedot

chipset: ESPRESSIF ESP-WROOM-32

general purpose IO: 17

processors:

CPU: Xtensa dual-core (or single-core) 32-bit LX6 microprocessor, operating at 160 or 240 MHz and performing at up to 600 DMIPS

ultra low power (ULP) co-processor

memory:

520 KB SRAM

448 KB ROM

wireless connectivity:

WiFi: 802.11 b/g/n

Bluetooth®: v4.2 BR/EDR and BLE

power management:

max. current consumption: 300 mA

deep sleep power consumption: 10 µA

max. battery input voltage: 6 V

max. battery charge current: 450 mA

dimensions (W x L x H): 56 x 50 x 7.5 mm (2.2 x 1.97 x 2.95 inch)
