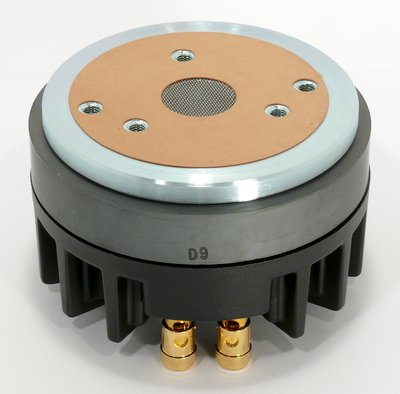

DISKANTTIDRIVERI 1'' VISATON DR 45 N 8 OHM TORVIDISKANTILLE

Professional 1" driver with titanium dome, in conjunction with the exponential horn system M 300, as midrange driver above 800 Hz. The 40 mm aluminium-voice-coil and the heavy duty magnet drive are making this system suitable for professional horn-driver units with the required high efficiency and high power handling. The very linear frequency response of this horn-driver unit is also matching the demands of highly professional high end applications.

Technical Data:
Nominal power handling with high pass	100 W (12 dB/Okt.; 1000 Hz)
Peak power handling with high pass	150 W (12 dB/Okt.; 1000 Hz)
Nominal impedance Z	8 Ohm
Frequency response	500–12000 Hz
Mean sound pressure level	102 dB (1 W/1 m)
Resonance frequency fs	600 Hz
Magnetic induction	1,55 T
Magnetic flux	90 µWb
Voice coil diameter	40 mm
Net weight	2,8 kg
D.C. resistance Rdc	6,2 Ohm
Inductance of the voice coil L	0,1 mH
