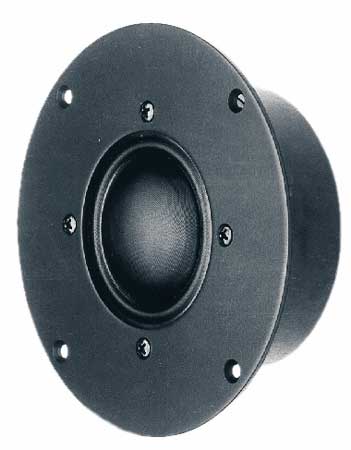

DISKANTTI VISATON G 50 FFL 8 OHM

50 mm (2") High-End fabric dome driver for the midrange band between 800 and 7000 Hz. Due to the optimised dome shape with damping coating in conjunction with the highly damped surround, linear frequency response and no partial oscillations. Due to the powerful magnetic drive and the ferrofluid-cooled voice-coil high efficiency and high power handling can be guaranteed.

Technical Data:
Nominal power handling with high pass	120 W (12 dB/Okt.; 800 Hz)
Peak power handling with high pass	180 W (12 dB/Okt.; 800 Hz)
Nominal impedance Z	8 Ohm
Frequency response	300–12000 Hz
Mean sound pressure level	90 dB (1 W/1 m)
Opening angle (-6 dB)	180°/4000 Hz
Resonance frequency fs	455 Hz
Magnetic induction	1,4 T
Magnetic flux	880 µWb
Height of front pole-plate	3,5 mm
Voice coil diameter	50 mm
Height of winding	3 mm
Cutout diameter	106 mm
Net weight	1,0 kg
D.C. resistance Rdc	6,4 Ohm
Mechanical Q factor Qms	0,48
Electrical Q factor Qes	0,67
Total Q factor Qts	0,28
Equivalent volume Vas	0,037 l
Effective piston area Sd	20 cm²
Dynamically moved mass Mms	1,2 g
Inductance of the voice coil L	0,16 mH
