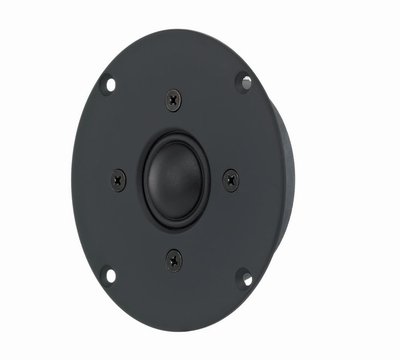

DISKANTTI VISATON G 25 FFL 8 OHM

25 mm (1") fabric dome driver for the high-frequency range above 2000 Hz. Due to the optimised dome shape with double coating in conjunction with the highly damped surround, linear frequency response has been made possible. Due to the powerful magnetic driver and the ferrofluid-cooled voice-coil high efficiency and high power handling can be guaranteed.

Technical Data:
Nominal power handling with high pass	80 W (12 dB/Okt.; 2000 Hz) 120 W (12 dB/Okt.; 4000 Hz)
Peak power handling with high pass	140 W (12 dB/Okt.; 2000 Hz) 180 W (12 dB/Okt.; 4000 Hz)
Nominal impedance Z	8 Ohm
Frequency response	1000–30000 Hz
Mean sound pressure level	90 dB (1 W/1 m)
Opening angle (-6 dB)	167°/8000 Hz
Resonance frequency fs	1600 Hz
Magnetic induction	1,7 T
Magnetic flux	425 µWb
Height of front pole-plate	2,5 mm
Voice coil diameter	25 mm
Height of winding	2 mm
Cutout diameter	80 mm
Net weight	0,56 kg
D.C. resistance Rdc	5,6 Ohm
Mechanical Q factor Qms	0,66
Electrical Q factor Qes	1,11
Total Q factor Qts	0,41
Effective piston area Sd	4,9 cm²
Dynamically moved mass Mms	0,3 g
Inductance of the voice coil L	0,05 mH
