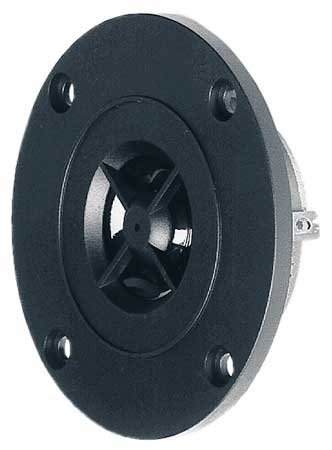

DISKANTTI VISATON DTW 72 8 OHM

14 mm (0.6") polycarbonate dome driver for the highrange above 4000 Hz. Balanced frequency response and excellent omnidirectional sound distribution. Due to the strong magnetic drive and the ultra-light dome in conjunction with the ferrofluid-cooled voice-coil good efficiency and high power handling.

Technical Data:
Nominal power handling with high pass	70 W (12 dB/Okt.; 5000 Hz)
Peak power handling with high pass	110 W (12 dB/Okt.; 5000 Hz)
Nominal impedance Z	8 Ohm
Frequency response	2200–23000 Hz
Mean sound pressure level	91 dB (1 W/1 m)
Opening angle (-6 dB)	125°/8000 Hz
Resonance frequency fs	3000 Hz
Magnetic induction	1 T
Magnetic flux	65 µWb
Height of front pole-plate	2 mm
Voice coil diameter	14 mm
Height of winding	2 mm
Cutout diameter	50 mm
Net weight	0,075 kg
D.C. resistance Rdc	5,7 Ohm
Effective piston area Sd	2 cm²
Dynamically moved mass Mms	0,1 g
Inductance of the voice coil L	0,16 mH
