DISKANTTI VISATON DT 94 8 OHM

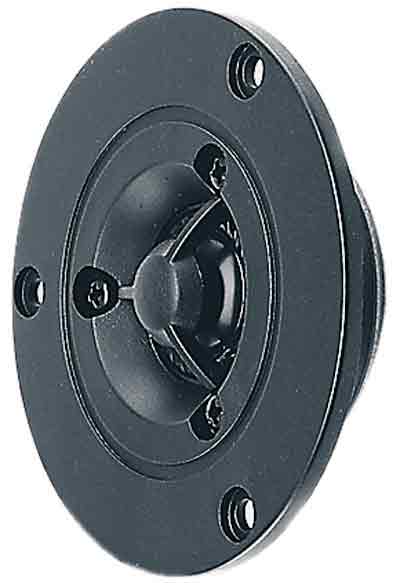

20 mm (0.8") polycarbonate HiFi driver with round shaped front plate for the highrange above 3000 Hz. Balanced frequency response and good omnidirectional sound distribution. High power handling due to ferrofluid-cooled voice-coil.

Technical Data:
Nominal power handling with high pass	70 W (12 dB/Okt.; 4000 Hz) 50 W (12 dB/Okt.; 2000 Hz)
Peak power handling with high pass	100 W (12 dB/Okt.; 4000 Hz) 80 W (12 dB/Okt.; 2000 Hz)
Nominal impedance Z	8 Ohm
Frequency response	1200–22000 Hz
Mean sound pressure level	90 dB (1 W/1 m)
Excursion limit	84°/8000 Hz
Resonance frequency fs	1900 Hz
Magnetic induction	1,2 T
Magnetic flux	185 µWb
Height of front pole-plate	2,5 mm
Voice coil diameter	20 mm
Height of winding	2 mm
Cutout diameter	64 mm
Net weight	0,24 kg
D.C. resistance Rdc	6,7 Ohm
Mechanical Q factor Qms	3,07
Electrical Q factor Qes	0,66
Total Q factor Qts	0,54
Effective piston area Sd	3 cm²
Dynamically moved mass Mms	0,2 g
Inductance of the voice coil L	0,12 mH
