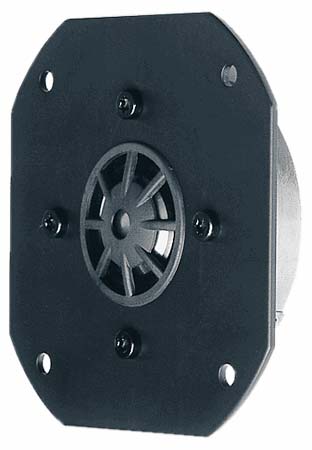

DISKANTTI VISATON DSM 25 FFL 8 OHM

25 mm (1'') High-End titanium dome driver for the highrange above 2000 Hz. Due to the enormously strong and ultra-light titanium dome and in conjunction with a highly damped sypronyle surround, linear frequency response and no partial oscillations. Due to the enormously high magnetic flux in the ferrofluid-filled air-gap high efficiency and high power handling are possible.

Technical Data:
Nominal power handling with high pass	80 W (12 dB/Okt.; 2000 Hz)
Peak power handling with high pass	140 W (12 dB/Okt.; 2000 Hz)
Nominal impedance Z	8 Ohm
Frequency response	1000–30000 Hz
Mean sound pressure level	90 dB (1 W/1 m)
Opening angle (-6 dB)	138°/8000 Hz
Resonance frequency fs	1600 Hz
Magnetic induction	1,7 T
Magnetic flux	425 µWb
Height of front pole-plate	2,5 mm
Voice coil diameter	25 mm
Height of winding	2 mm
Cutout diameter	80 mm
Net weight	0,53 kg
D.C. resistance Rdc	5,9 Ohm
Mechanical Q factor Qms	1,83
Electrical Q factor Qes	1,87
Total Q factor Qts	0,92
Effective piston area Sd	4,9 cm²
