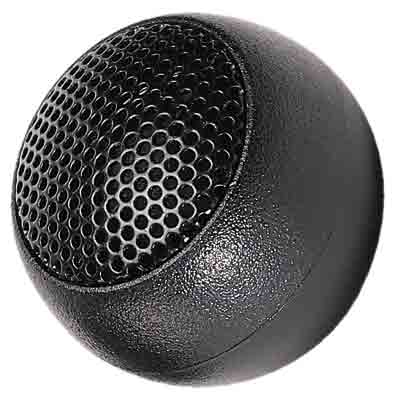

DISKANTTI VISATON CP 13 (pari) 4 OHM

Very compact 13 mm (0.5") ferro-fluid cooled tweeter with a polycarbonate cone, featuring an absolutely linear frequency response. Crisp high-range reproduction and excellent omnidirectional sound distribution. Tweeter in low to medium-output 2- or 3-way systems or as an additional tweeter. Can be surface or flush mounted. Especially suitable for mounting in confined spaces (e.g. mirror vicinity and door handles). Accessories: Mounting ring and connecting cables included

Technical Data:
Nominal power handling with high pass	60 W (12 dB/Okt.; 6000 Hz)
Peak power handling with high pass	100 W (12 dB/Okt.; 6000 Hz)
Nominal impedance Z	4 Ohm
Frequency response	1700–22000 Hz
Mean sound pressure level	86 dB (1 W/1 m)
Opening angle (-6 dB)	180°/8000 Hz
Resonance frequency fs	2400 Hz
Magnetic induction	0,8 T
Magnetic flux	65 µWb
Voice coil diameter	13 mm
Height of winding	1,5 mm
Cutout diameter	33,5 mm
Net weight	0,033 kg
D.C. resistance Rdc	3,3 Ohm
Inductance of the voice coil L	0,4 mH
