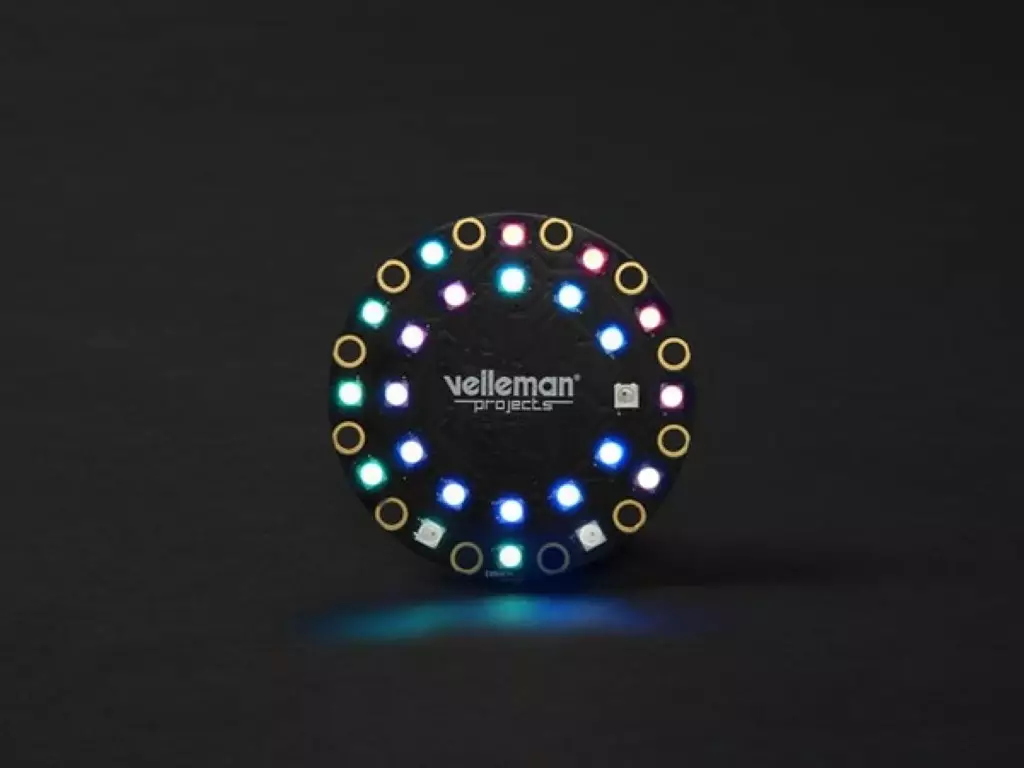

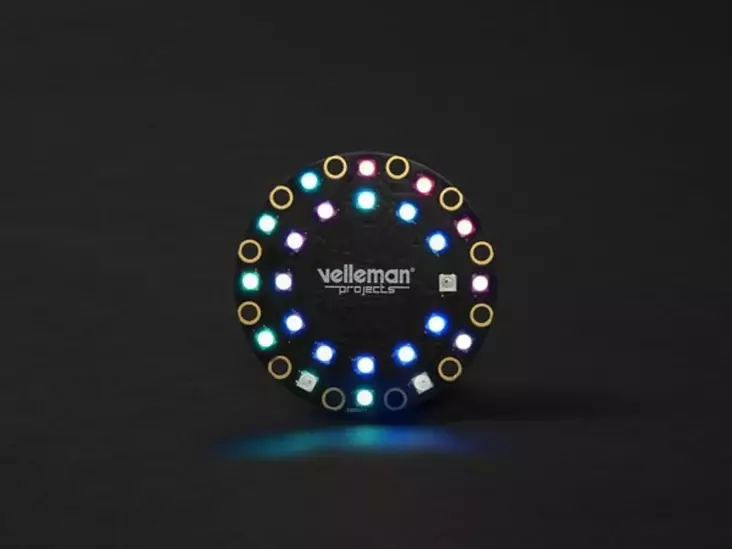

BRIGHTDOT WEARABLE DEVELOPMENT BOARD

This BrightDot is an ATmega32U4 based, Arduino® compatible development board that you can use as a wearable or e-textile. Be creative and use the multicoloured RGB LEDs to brighten up your wardrobe, decorations, backpack or even make Christmas ornaments!

The alligator friendly pads/holes enable you to quickly prototype your creation. The pads were also made bigger to ease the use of conductive wire and they are gold plated to ensure durability. The integrated single cell LiPo charger makes the LED badge more versatile, even though it has an existing open system.

The 24 BrightDot LEDs (WS2812) enable you to display bright and colourful animations with just a single pin!

This module comes preloaded with a watch program and an onboard hardware real time clock. The real time clock enables you to keep the time, even when the ATMega32u4 is powered off (but the power supply must stay connected). With the onboard single colour LED and button, you can quickly debug and test programs without any wires. To top things off, a dedicated ON/OFF switch is included to keep the power consumption as low as possible when you're not using the device.

Ominaisuudet

Atmega32u4 @ 8 MHz

native USB support

24 BrightDot addressable RGB LEDs (WS2812)

ON/OFF switch

reset button

1 user button

1 user LED

PCF8523 RTC clock

10 GPIO sewable contacts and alligator clip friendly

charging indicator LED

RX/TX LED indication

LEDs are mounted in a clock form

free Arduino library

included:

an easy to use battery holder for 3 AA batteries (batteries not incl.)[product name=BH331A]an easy to use battery holder for 3 AA batteries (batteries not incl.)[/product]

USB 2.0 A to micro USB cable

preloaded watch program

onboard hardware real-time clock

Tekniset tiedot

dimensions:

diameter: 8 cm (3,15 inch)

height: 9 mm (3,54 inch)

power supply: USB or battery powered

max. battery supply voltage: 6 V

current consumption: min. 20 mA, max. 1 A (when all RGB LEDs are on, software limited)

battery or USB pass through output: max. 1 A (depends on battery and USB capacity)

CPU speed: 8 MHz
