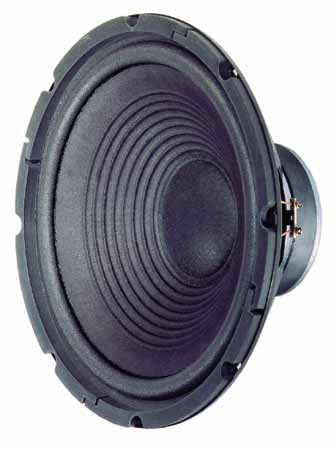

BASSOELEMENTTI VISATON W 300 8 OHM
30 CM (12'') BASSOELEMENTTI
99,70 €(Sis.alv)
79,44 €(alv 0%)
- Tuotekoodi: W300-8OHM
- Takuu: 3 vuotta
- Paino: 3.34 kg
kpl
30 cm (12") woofer with air-dried cone and pressure vented pole piece. Can be fitted at front or rear. Excellent value for money coupled with very good power-handling capabilities. Particularly suitable as a replacement for HiFi speakers.
Recommended cabinets:
| Volume/Principle | BR-Channel | fb | fc/QTC |
| 70 l/closed | - | - | 56 Hz/0,8 |
| 100 l/closed | - | - | 49 Hz/0,71 |
| 150 l/closed | - | - | 43 Hz/0,62 |
| 70 l/bass reflex | BR 25.50 (length 7 cm) | 36 Hz | - |
| 100 l/bass reflex | BR 25.50 (length 20 cm) | 32 Hz | - |
| 150 l/bass reflex | 2 x BR 15.34 (length 7 cm) | 29 Hz | - |
| Technical Data: | |
|---|---|
| Rated power | 120 W |
| Maximum power | 180 W |
| Nominal impedance Z | 8 Ohm |
| Frequency response | fu–2500 Hz |
| (fu: Lower cut-off frequency depending on cabinet) | . |
| Mean sound pressure level | 91 dB (1 W/1 m) |
| Excursion limit | +/−14 mm |
| Resonance frequency fs | 32 Hz |
| Magnetic induction | 0,95 T |
| Magnetic flux | 1250 µWb |
| Height of front pole-plate | 8 mm |
| Voice coil diameter | 50 mm |
| Height of winding | 18,5 mm |
| Cutout diameter | 280 mm |
| Net weight | 2,8 kg |
| D.C. resistance Rdc | 6,6 Ohm |
| Mechanical Q factor Qms | 2,68 |
| Electrical Q factor Qes | 0,54 |
| Total Q factor Qts | 0,45 |
| Equivalent volume Vas | 190 l |
| Effective piston area Sd | 490 cm² |
| Dynamically moved mass Mms | 43 g |
| Force factor Bxl | 9,44 Tm |
| Inductance of the voice coil L | 1,77 mH |
