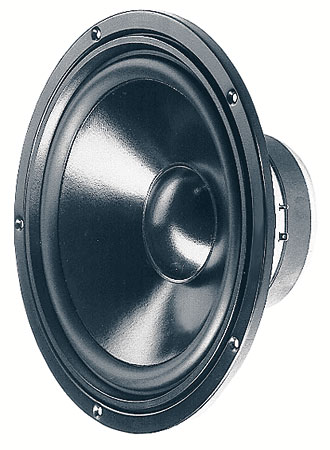

BASSOELEMENTTI VISATON W 250 S 4 OHM
25 CM (10'') BASSOELEMENTTI
101,84 €(Sis.alv)
81,15 €(alv 0%)
- Tuotekoodi: W250S-4OHM
- Takuu: 3 vuotta
- Paino: 3.5 kg
kpl
25 cm (10") HiFi woofer with strong drive, extended rear pole plate and 38 mm voice-coil for high power handling. Elastic rubber surround, coated paper cone and magnet vent.
Recommended cabinets:
| Volume/Principle | BR-Channel | fb |
| 50 l/bass reflex | 2 x BR 15.34 | 43 Hz |
| 70 l/bass reflex | 2 x BR 15.34 | 39 Hz |
| 1 x BR 25.50 (length 7 cm) | ||
| 100 l/bass reflex | 2 x BR 15.34 (length 10 cm) | 34 Hz |
| Technical Data: | |
|---|---|
| Rated power | 100 W |
| Maximum power | 150 W |
| Nominal impedance Z | 4 Ohm |
| Frequency response | fu–5500 Hz |
| (fu: Lower cut-off frequency depending on cabinet) | . |
| Mean sound pressure level | 90 dB (1 W/1 m) |
| Excursion limit | +/−7 mm |
| Resonance frequency fs | 33 Hz |
| Magnetic induction | 1,0 T |
| Magnetic flux | 835 µWb |
| Height of front pole-plate | 7 mm |
| Voice coil diameter | 38 mm |
| Height of winding | 17 mm |
| Cutout diameter | 233 mm |
| Net weight | 3 kg |
| D.C. resistance Rdc | 3,6 Ohm |
| Mechanical Q factor Qms | 2,01 |
| Electrical Q factor Qes | 0,43 |
| Total Q factor Qts | 0,35 |
| Equivalent volume Vas | 135 l |
| Effective piston area Sd | 346 cm² |
| Dynamically moved mass Mms | 32 g |
| Force factor Bxl | 8,94 Tm |
| Inductance of the voice coil L | 0,93 mH |
