BASSOELEMENTTI VISATON W 200 S 8 OHM
20 CM (8'') BASSOELEMENTTI
69,90 €(Sis.alv)
55,70 €(alv 0%)
- Tuotekoodi: W200S-8OHM
- Takuu: 3 vuotta
- Paino: 1.65 kg
kpl

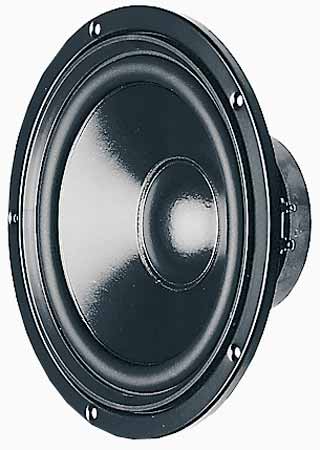

20 cm (8") HiFi woofer with strong drive, extended rear pole plate and 35 mm voice-coil for high power handling. Elastic rubber surround and coated paper cone.
Recommended cabinets:
| Volume/Principle | BR-Channel | fb | fc/QTC |
| 15 l/closed | - | - | 70 Hz/0,7 |
| 20 l/bass reflex | BR 19.24 (length 14 cm) | 45 Hz | - |
| 30 l/bass reflex | BR 19.24 (length 11 cm) | 39 Hz | - |
| 50 l/bass reflex | BR 15.34 (length 13 cm) | 33 Hz | - |
| Technical Data: | |
|---|---|
| Rated power | 75 W |
| Maximum power | 115 W |
| Nominal impedance Z | 8 Ohm |
| Frequency response | fu–6000 Hz |
| (fu: Lower cut-off frequency depending on cabinet) | . |
| Mean sound pressure level | 88 dB (1 W/1 m) |
| Opening angle (-6 dB) | 48°/4000 Hz |
| Excursion limit | +/−10 mm |
| Resonance frequency fs | 30 Hz |
| Magnetic induction | 1,1 T |
| Magnetic flux | 600 µWb |
| Height of front pole-plate | 5 mm |
| Voice coil diameter | 35 mm |
| Height of winding | 12 mm |
| Cutout diameter | 184 mm |
| Net weight | 1,5 kg |
| D.C. resistance Rdc | 6,0 Ohm |
| Mechanical Q factor Qms | 3,59 |
| Electrical Q factor Qes | 0,36 |
| Total Q factor Qts | 0,33 |
| Equivalent volume Vas | 70 l |
| Effective piston area Sd | 214 cm² |
| Dynamically moved mass Mms | 26 g |
| Force factor Bxl | 9,0 Tm |
| Inductance of the voice coil L | 2,2 mH |
