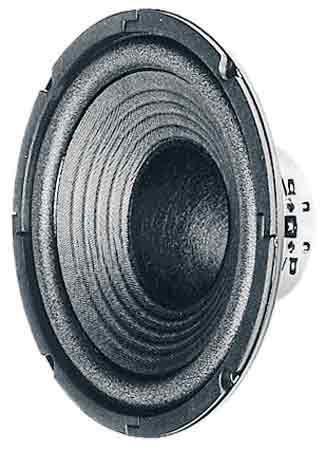

BASSOELEMENTTI VISATON W 200 8 OHM

 20 cm:n (8") bassokaiutin, erittäin hyvä hinta-laatusuhde. Sopii yksinkertaisiin 2-tie-kaiuttimiin ja auton bassokaiuttimeksi.
Sopii erityisen hyvin monien HiFi-kaiuttimien korvaavaksi kaiuttimeksi.

Technical Data:
Rated power	50 W
Maximum power	80 W
Nominal impedance Z	8 Ohm
Frequency response	fu–8000 Hz
(fu: Lower cut-off frequency depending on cabinet)	.
Mean sound pressure level	88 dB (1 W/1 m)
Opening angle (-6 dB)	49°/4000 Hz
Excursion limit	+/−10 mm
Resonance frequency fs	46 Hz
Magnetic induction	1,0 T
Magnetic flux	400 µWb
Height of front pole-plate	5 mm
Voice coil diameter	25 mm
Height of winding	9 mm
Cutout diameter	185 mm
Net weight	1,045 kg
D.C. resistance Rdc	6,8 Ohm
Mechanical Q factor Qms	2,82
Electrical Q factor Qes	0,80
Total Q factor Qts	0,62
Equivalent volume Vas	51 l
Effective piston area Sd	207 cm²
Dynamically moved mass Mms	14 g
Force factor Bxl	5,6 Tm
Inductance of the voice coil L	0,9 mH
