BASSOELEMENTTI VISATON W 170 S 8 OHM
17 CM (6.5'') BASSOELEMENTTI
44,90 €(Sis.alv)
35,78 €(alv 0%)
- Tuotekoodi: W170S-8OHM
- Takuu: 3 vuotta
- Paino: 0.98 kg
kpl

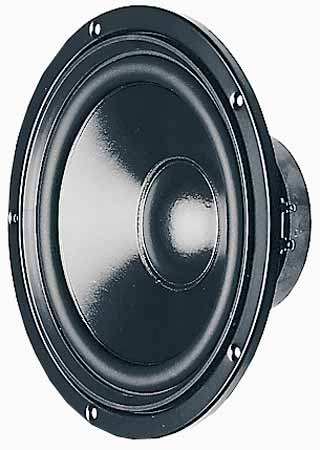

17 cm (6.5") HiFi woofer with coated paper cone, powerful drive and extended rear pole plate. Special voice-coil and elastic rubber surround for long strokes.
Recommended cabinets:
| Volume/Principle | BR-Channel | fb | fc/QTC |
| 20 l/closed | - | - | 57 Hz/0,74 |
| 20 l/bass reflex | BR 19.24 (length 14 cm) | 44 Hz | - |
| 30 l/bass reflex | BR 15.34 (length 12 cm) | 39 Hz | - |
| 50 l/bass reflex | BR 15.34 | 33 Hz | - |
| Technical Data: | |
|---|---|
| Rated power | 50 W |
| Maximum power | 80 W |
| Nominal impedance Z | 8 Ohm |
| Frequency response | fu–8000 Hz |
| (fu: Lower cut-off frequency depending on cabinet) | . |
| Mean sound pressure level | 86 dB (1 W/1 m) |
| Opening angle (-6 dB) | 72°/4000 Hz |
| Excursion limit | +/−10 mm |
| Resonance frequency fs | 36 Hz |
| Magnetic induction | 1,0 T |
| Magnetic flux | 314 µWb |
| Height of front pole-plate | 4 mm |
| Voice coil diameter | 25 mm |
| Height of winding | 12,5 mm |
| Cutout diameter | 148 mm |
| Net weight | 1,1 kg |
| D.C. resistance Rdc | 5,9 Ohm |
| Mechanical Q factor Qms | 2,43 |
| Electrical Q factor Qes | 0,66 |
| Total Q factor Qts | 0,52 |
| Equivalent volume Vas | 38 l |
| Effective piston area Sd | 129 cm² |
| Dynamically moved mass Mms | 13 g |
| Force factor Bxl | 5,4 Tm |
| Inductance of the voice coil L | 1,2 mH |
