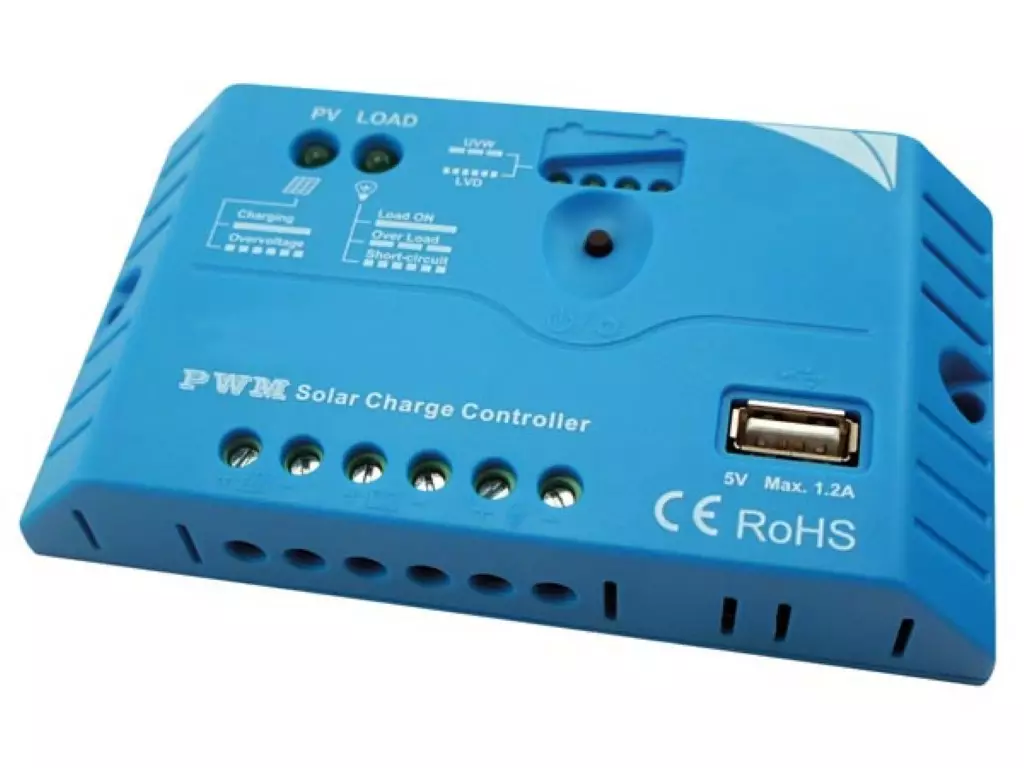

AURINKOPANEELIN LATAUSSÄÄDIN USB LÄHDÖLLÄ - 10 A - 12/24 VDC

Ominaisuudet

• efficient PWM charger: increases battery life and improves solar system performance
• LED indicator for battery status
• supports 3 battery types: sealed, gel , flooded
• temperature compensation, automatic selection of charging and discharging settings
• electronic protections: overload, short circuit, over-discharging, over-voltage, low-voltage, reverse polarity
• with 5 VDC USB port to charge electronic equipment

Tekniset tiedot

• nominal system voltage: 12 / 24 VDC
• max. battery voltage to the controller: 32 V
• rated battery current: 10 A
• charge circuit voltage drop: <= 0.26 V
• discharge circuit voltage drop: <= 0.15 V
• self-consumption: <= 6 mA
• temperature compensation: -5 mV / °C / 2 V
• operating temperature: -35 °C to +55 °C
• storage temperature: -35 °C to +80 °C
• humidity: <= 95%, non-condensing
• USB: 5 VDC max. 1.2 A
• IP rating: IP20
• terminal: 4 mm²
• dimensions: 120.3 x 67 x 21.8 mm
• mounting hole diameter: 4.5 mm
• weight: 102 g
