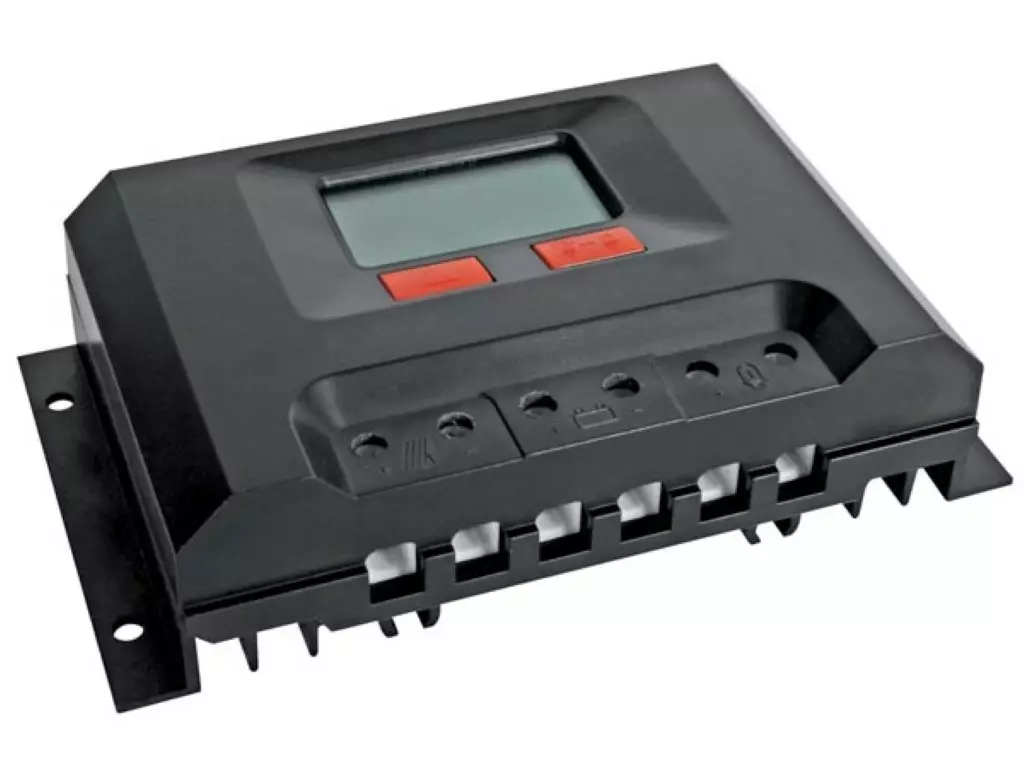

AURINKOKENNOJEN LATAUSSÄÄDIN 30A 12VDC MAKSIMI 30A 300W

Ominaisuudet

• ideal for solar DC lighting system
• intelligent control with MCU - maintains the battery in a fully charged state
• overcharging, overdischarging and overload protection
• auto-detection of wrong polarity of solar panel and battery
• battery voltage indicated on LCD display
• handles up to 30A (300W)
• for use with (not incl.): SOL14, SOL15
• optional (not incl.):
  • extension cable: SOL/SPC1
  • lead acid batteries: WP12-12, WP15-12

Tekniset tiedot

• input current: max. 30A
• load current : max. 30A
• input voltage: max. 28V
• over-charge protection: 14.5V ± 0.4V
• over-discharge protection: 10.7V ± 0.4V
• output voltage: 12VDC
• no-load current: < 25mA
• voltage loss charging circuit: 13.3V ± 0.4V
• voltage loss discharging circuit: 12V ± 0.4V
• operating temperature: -25°C ~ 40°C
• dimensions: 160 x 95 x 40mm
• weight: ± 350g
