ATmega2560 MEGA KOPIO

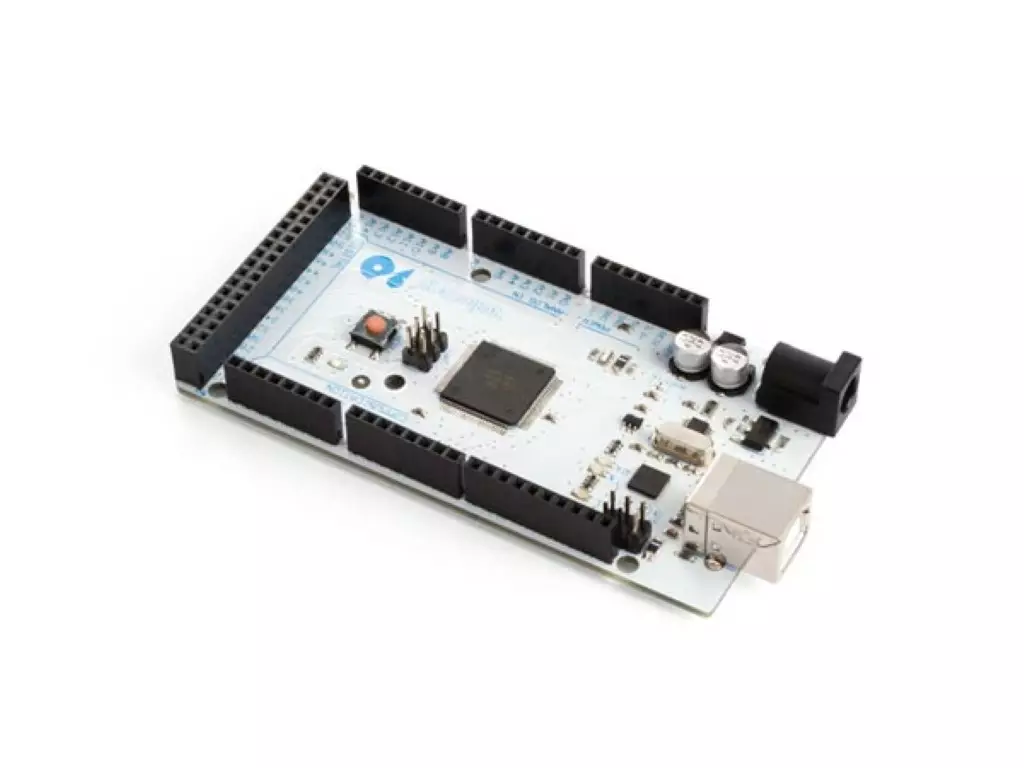

The ATmega2560 MEGA DEVELOPMENT BOARD (Arduino® Compatible) Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.

Ominaisuudet

100% compatible with Arduino® MEGA2560

Tekniset tiedot

microcontroller: ATmega2560

operating voltage: 5 VDC

input voltage (recommended): 7-12 VDC

input voltage (limits): 6-20 VDC

digital I/O pins: 54 (of which 15 provide PWM output)

analogue input pins: 16

DC current per I/O pin: 40 mA

DC current for 3.3 V pin: 50 mA

flash memory: 256 kB of which 8 kB used by bootloader

SRAM: 8 kB

EEPROM: 4 kB

clock speed: 16 MHz

length: 112 mm

width: 55 mm

weight: 62 g
