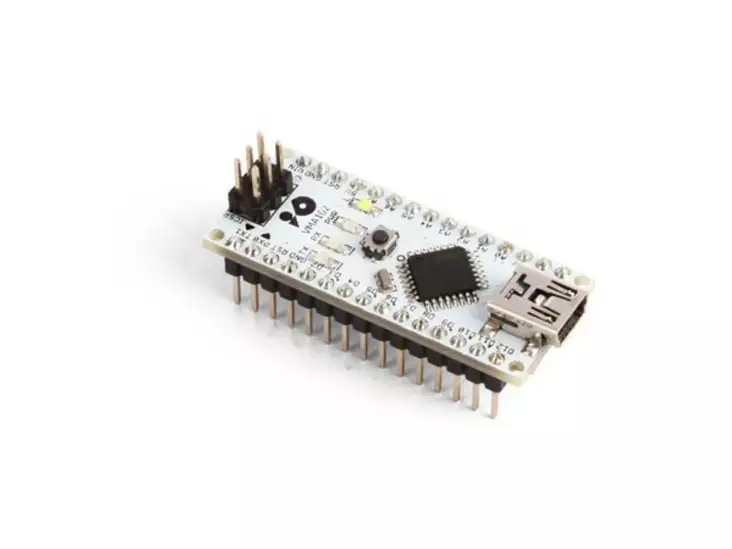

ARDUINO NANO ATmega328 KLOONI KEHITYSKORTTI

The ATmega328 DEVELOPMENT BOARD (Arduino® Compatible Nano 3.0) is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x) orATmega168 (Arduino Nano 2.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a mini-B USB cable instead of a standard one.

Ominaisuudet

100% compatible with Arduino® NANO 3.0

Tekniset tiedot

microcontroller: Atmel ATmega168 or ATmega328

operating voltage: 5 VDC

input voltage (recommended): 7-12 VDC

input voltage (limits): 6-20 VDC

digital I/O pins: 14 (of which 6 provide PWM output)

analogue input pins: 8

DC current per I/O pin: 40 mA

flash memory: 16 kB (ATmega168) or 32 kB (ATmega328)

SRAM: 1 kB (ATmega168) or 2 kB (ATmega328)

EEPROM: 512 bytes (ATmega168) or 1 kB (ATmega328)

clock speed: 16 MHz

length: 45 mm

width: 18 mm

weight: 5 g
