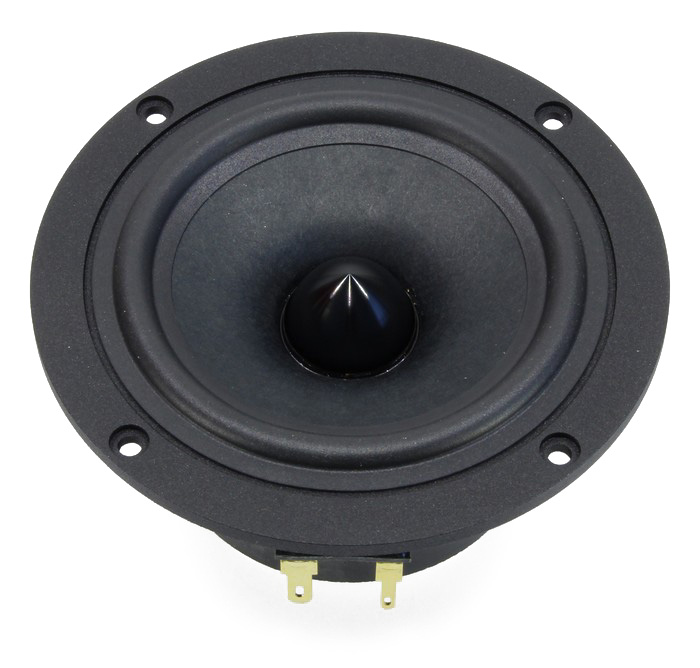

10 CM (4'') LAAJAKAISTAELEMENTTI
10 cm (4") high-end full-range loudspeaker with excellent balanced response characteristics and slightly increasing high-range for a pleasant sound even outside of 0-axis. High efficiency with low distortion are just some of the qualities of this speaker.
104,30 €(Sis.alv)
83,11 €(alv 0%)
- Tuotekoodi: B100-6OHM
- Takuu: 3 vuotta
- Paino: 0.47 kg
kpl
10 cm (4") high-end full-range loudspeaker with excellent balanced response characteristics and slightly increasing high-range for a pleasant sound even outside of 0-axis. High efficiency with low distortion are just some of the qualities of this speaker.
Attributes
- Paper membrane
- Impedance control ring (aluminum)
- Aluminum die cast basket
- Phaseplug
Recommended cabinets
Volume/Principle | BR-Channel | fb | fc/QTC |
| 5,8 l / closed | - | - | 107 Hz/0,71 |
| 11 l / bass reflex | 1 x BR 19.24 (length 9 cm) | 60 Hz | - |
Technical Data
Cm 1.28 mm/N
Rated power 30 W
Maximum power 60 W
Nominal impedance Z 6 Ohm
Frequency response fu–20000 Hz
(fu: Lower cut-off frequency depending on cabinet)
.
Mean sound pressure level 88 dB (1 W/1 m)
Maximum linear displacement +/- 1.6 mm
Excursion limit +/- 7.0 mm
Resonance frequency fs 75 Hz
Magnetic induction 1.29 T
Magnetic flux 316 µWb
Height of front pole-plate 3 mm
Voice coil diameter 26 mm
Height of winding 6.3 mm
Cutout diameter 101 mm
Net weight 0.68 kg
D.C. resistance Rdc 5.8 Ohm
Mechanical Q factor Qms 10.13
Electrical Q factor Qes 0.54
Total Q factor Qts 0.52
Equivalent volume Vas 5.27 l
Effective piston area Sd 54.1 cm²
Dynamically moved mass Mms 3.2 g
Force factor Bxl 4.1 Tm
Inductance of the voice coil L 0.36 mH
Connections
4.8 x 0.8 mm (+)
2.8 x 0.8 mm (−)
2.8 x 0.8 mm (−)
