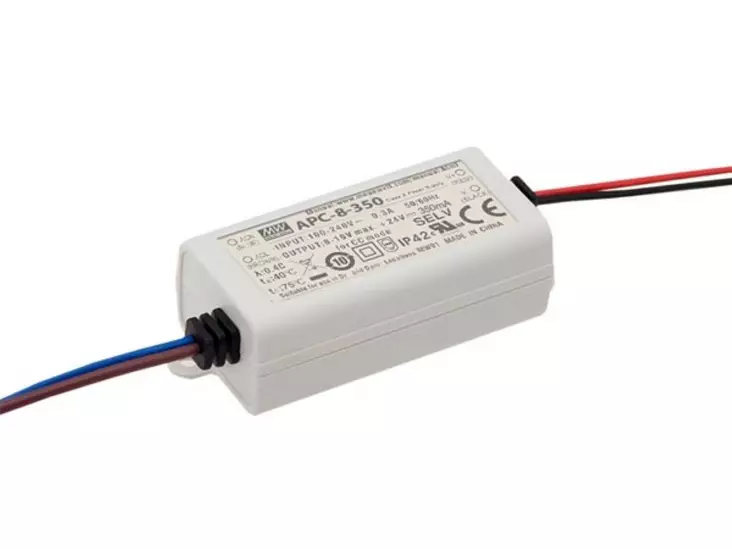

LED TEHOLÄHDE VAKIOVIRTA - 350 mA - 8.05 W

Ominaisuudet

• constant current design
• universal AC input / full range
• class II power unit, no FG
• fully isolated plastic case
• IP42 design
• small and compact size
• cooling: free air convection
• protection: short circuit
• no load power consumption of <0.5W
• 100% full load burn-in test
• low cost / high reliability
• applications:
  • indoor LED lighting
  • LED decorative lighting
  • LED office lighting

Tekniset tiedot

• anto:
  • rated current: 350 mA
  • operating voltage: 11 - 23 V
  • rajoitettu kuormitettavuus: 8.05 W
  • ripple & noise (max.): 300 mVp-p
  • no load output voltage: 29 V
  • current accuracy: +/- 8 %
  • setup, rise time: 500 ms, 180 ms / 230 VAC 3000 ms, 150 ms / 115 VAC at full load
  • hold up time: 20 ms / 230 VAC at full load
• tulo:
  • voltage range: 90-264 VAC 127-370 VDC
  • frequency range: 47-63 Hz
  • efficiency (typ.): 81.5 %
  • AC current: 0.15 A / 230 VAC; 0.3 A /1 15 VAC
  • inrush current (typ.): cold start 70 A (twidth = 120 µs measured at 50 % Ipeak) at 230 VAC
  • leakage current: 0.25 mA / 240 VAC
• protection:
  • short circuit: hiccup mode, recovers automatically after fault condition is removed
• environment:
  • lämpötila-alue: -30 to +70 °C
  • operating humidity: 20-90 % RH non-condensing
  • storage: -40 to +80 °C, 10-95 % RH
  • temperature coefficient: +/- 0.2 % / °C (0-45 °C)
  • vibration: 10-500 Hz, 2G 10 min/1 cycle, period for 60 min each along X, Y, Z axes
• safety & EMC:
  • safety standards: UL8750, CSA-C22.2 No. 250.0-08 approved; design refer to EN60950-1, EN61347-1, EN61347-2-13
  • withstand voltage: input to output: 3.75 kVAC
  • isolation resistance: input to output: > 100 Mohm / 500 VDC / 25 °C / 70 % RH
  • EMC emission: compliance to EN55022, EN61000-3-2 Class A, EN61000-3-3
  • EMC immunity: compliance to EN55024, EN61000-4-2,3,4,5,6,8,11; light industry level (surge 2 KV), criteria A
• others:
  • MTBF: min. 2275.8K h, MIL-HDBK-217F (25 °C)
  • mitat: 60 x 30 x 23.5 mm
