CHUANGO - ROLLER SHUTTER DOOR SENSOR

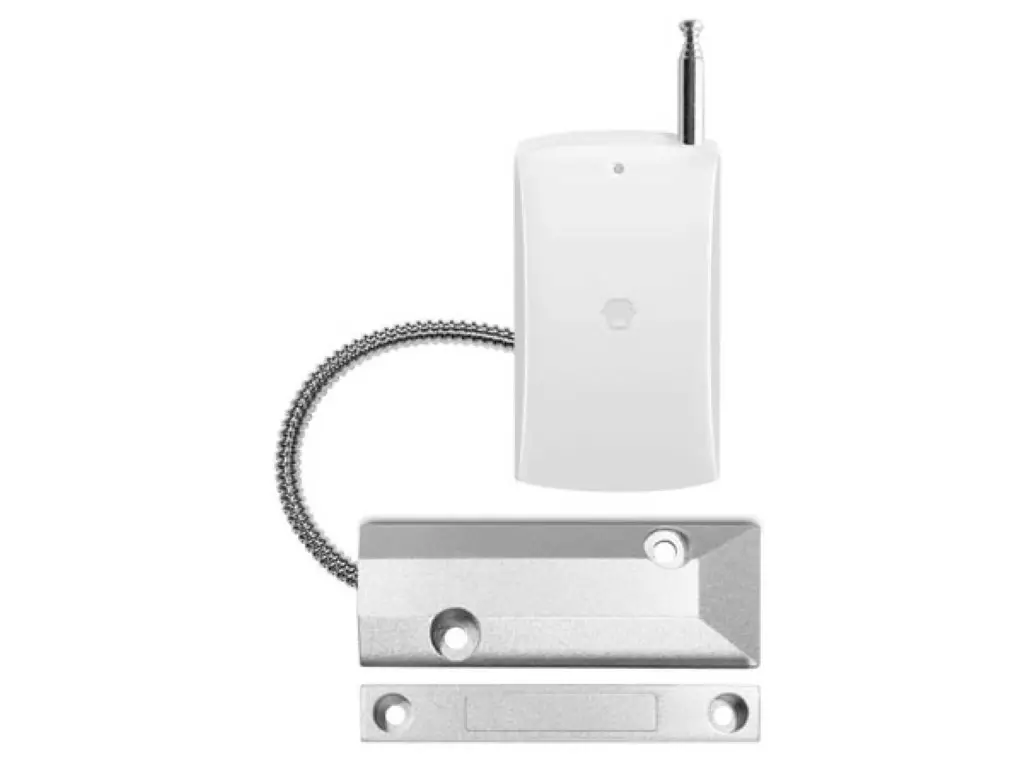

The CG-DWC55 roller shutter door sensor is used for rolling gates. When the metal magnet and the metal reed switch are separated more than 2 cm, it will transmit wireless alert signal to the connected control panel immediately. The lifespan of the battery depends on the frequency of opening and closing the door/gate, the normal battery service life is about 12 to 15 months.

Ominaisuudet

easy mounted by 3M sticker

low battery notification

tamper protection

wireless range up to 80 meters (open area)

1 year battery life

contents:

double-sided tape

AAA 1.5 V LR03 battery

installation and operating instructions

Tekniset tiedot

power supply: 3 VDC battery (AAA 1.5 V LR03 x 2)

standby current: </= 23 uA

alarm current: </= 40 mA

transmitting distance: </= 80 m (in open area)

radio frequency: 315 MHz/ 433.92 MHz

housing material: ABS & aluminium alloy

operating conditions:

operating temperature: -10 °C to +55 °C

relative humidity: </= 80% (non-condensing)

dimensions (L x W x D):

metal magnet: 105.5 x 15.5 x 15.5 mm

metal reed switch: 105.5 x 38 x 9.6 mm

transmitter: 38 x 105.5 x 9.6 mm
